Are Your Fire Extinguisher Signs OSHA Compliant? What You Need to Know,

In the event of a workplace fire, the difference between a minor incident and a total loss often comes down to reaction time. A fire extinguisher is your first line of defense, but it is completely useless if an employee cannot find it in the chaos of the moment.

According to OSHA Standard 1910.157, simply mounting a fire extinguisher on the wall is not enough. If the unit is blocked by a shelf, hidden inside a cabinet, or obscured by heavy machinery, you are in violation of federal safety standards.

Proper signage is the bridge between the equipment and the user. It ensures that even through smoke or panic, the path to safety tools is obvious. Learn more about the specific visibility requirements for fire extinguishers and how to ensure your facility is fully compliant.

What Are Fire Extinguisher Signs?

Fire extinguisher signs are high-visibility markers designed to identify the exact location of firefighting equipment. They serve two purposes. First, they guide people to the equipment from a distance. Second, they often provide quick-reference instructions on how to use the device. When updating your fire safety plan, you will typically need signs such as:

Shop Fire Safety Signs:

• 3D Projecting Wall Signs

• Glow-in-the-Dark (Photoluminescent) Signs

• Fire Extinguisher ID Labels

• Directional Arrow Signs

3 Key OSHA Requirements for Extinguisher Visibility

OSHA does not just suggest you hang a sign. They require that extinguishers be “identified so that they are readily accessible.” Here is what that means in practice.

1. Identification of Location

If a fire extinguisher is not immediately visible to an employee working in the area, its location must be indicated. The Rule: If the extinguisher is tucked inside a cabinet, recessed into a wall niche, or blocked from view by a structural column, you must install a sign above it. For cabinet-mounted units specifically, a die-cut cabinet sticker is an easy, low-profile way to stay compliant.

2. Visibility from All Angles

A flat sticker on the wall is fine if you are standing directly in front of it. However, fires are rarely that convenient. The Rule: In hallways or large open warehouses, you should use 3D (Projecting) Signs. These signs stick out from the wall in a V-shape or L-shape, making the “Fire Extinguisher” text and symbol visible to anyone walking down the corridor from either direction.

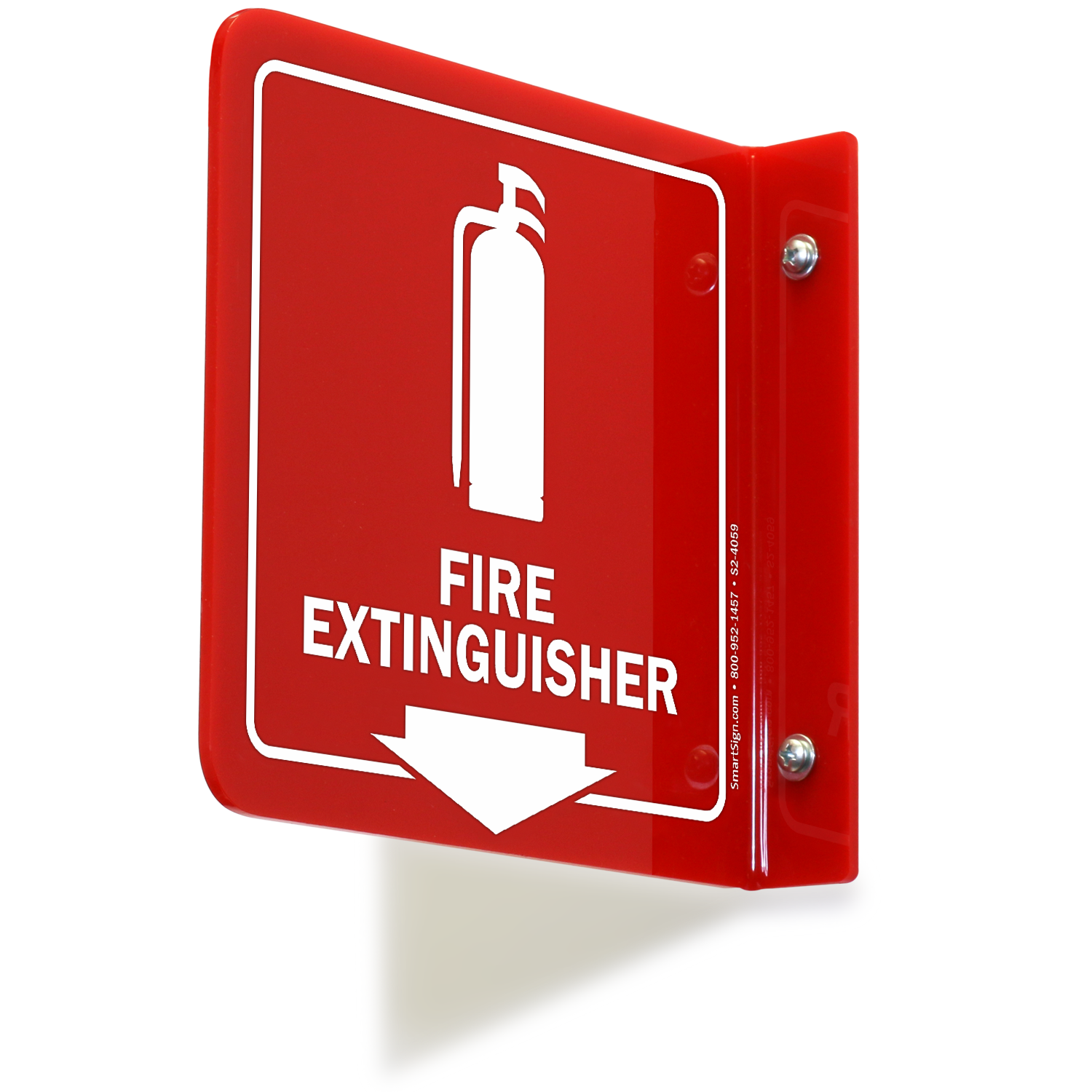

Projecting Fire Extinguisher Sign

3. Clear Operating Instructions

Locating the extinguisher is only half the battle. The user must know how to activate it. The Rule: While the extinguisher itself comes with a manufacturer label, these can wear off or be too small to read in the dark. It is best practice to post a Fire Extinguisher Classification Label nearby that explains which types of fires the unit can fight (Class A, B, C, etc.) to prevent someone from using water on an electrical fire.

Tips for Effective Installation

• Go High: Install signs high on the wall or column, well above the heads of workers and the tops of shelving units. A good rule of thumb is to place the sign at least 6 to 8 feet high so it acts as a beacon across the room.

• Use Photoluminescent Materials: Fire often brings thick smoke and power outages. “Glow-in-the-dark” signs absorb ambient light during the day and glow brightly when the lights go out, guiding workers to safety equipment even in pitch blackness.                                                                                                                   Glow In The Dark Fire Extinguisher Projecting Sign

• Use Directional Arrows: If the extinguisher is around a corner or obscured by a partition, use a sign with a directional arrow to clearly mark the path.

Incorporate the Right Signs Into Your Safety Strategy

Compliance is not just about avoiding a citation. It is about empowering your workforce to act quickly. By installing high-visibility, OSHA-compliant signage, you ensure that your safety equipment is always ready to be used when seconds matter most.

Read through some of the other articles published on our blog to get more expert advice on fire safety and emergency preparedness.

Frequently Asked Questions (FAQ)

1. When is a fire extinguisher sign required?

A. A sign is required when the extinguisher is not immediately visible. OSHA Standard 1910.157(c)(1) states that extinguishers must be “identified so that they are readily accessible.” If an extinguisher is visually obstructed by equipment, located inside a cabinet, or recessed in a wall, a high-visibility sign must be installed to mark its location.

2. How high should a fire extinguisher sign be mounted?

A. Signs should be mounted high enough to be seen over obstructions. While there is no specific inch-by-inch federal mandate for the sign height, best practice is to install them 6 to 8 feet above the floor. This ensures they remain visible above mostly shelving, machinery, and pedestrian traffic. The extinguisher itself, however, must be lower (handle roughly 3.5 to 5 feet from the floor) for accessibility.

3. What color must fire extinguisher signs be?

A. Red and white is the universal standard. To comply with ANSI and OSHA color codes, fire safety equipment is designated by the color Red. Signs typically feature a red background with white text or symbols (like a flame or extinguisher icon). This distinguishes them clearly from green emergency exit signs or yellow caution signs.

4. Are glow-in-the-dark signs required for fire extinguishers?

A. They are not federally mandated but highly recommended. OSHA does not explicitly require photoluminescent (glow-in-the-dark) signs for extinguishers, but many local fire codes and the NFPA strongly encourage them. In the event of a power outage or heavy smoke, a glow-in-the-dark sign is often the only thing visible, making it a critical safety asset.
